Product form

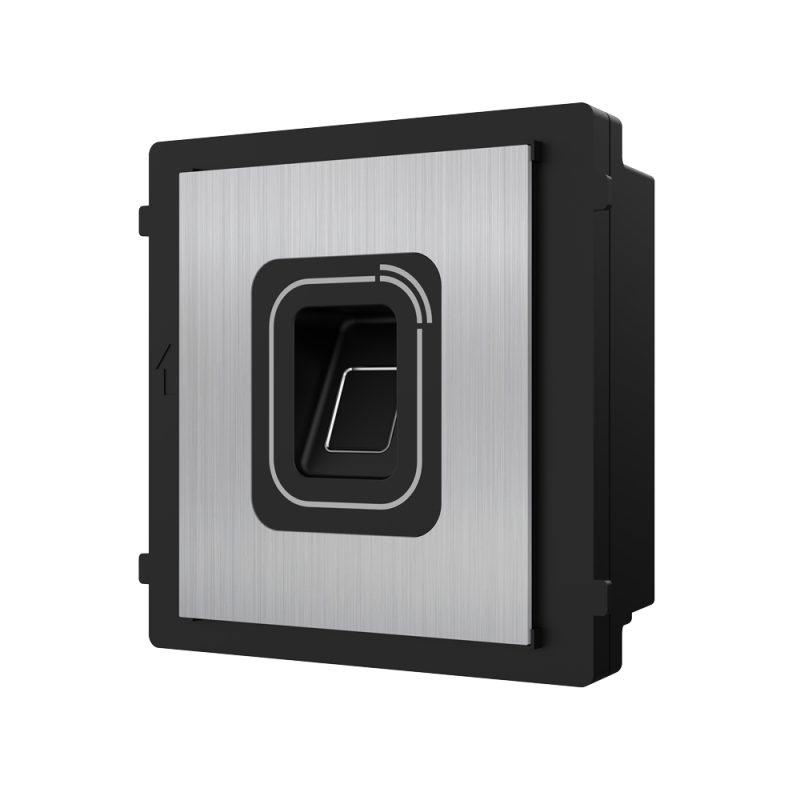

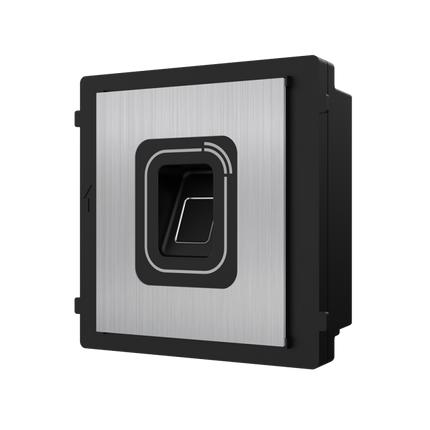

DS-KD-MFB-S, fingerprint and card reader module stainless steel

HikVision Video Intercom module; Submodule fingerprint and card reader M1, Desfire card, powered via main module KD-8003. To be installed... Read more

Delivery time 1 - 2 working days

€198,00€163,64 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>
    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for DS-KD-MFB-S, fingerprint and card reader module stainless steel

    Product Description

    HikVision Video Intercom module; Submodule fingerprint and card reader M1, Desfire card, powered via main module KD-8003.

    To be installed with e.g. KD-8003 camera module and ACF or ACW2 housing (not included) in or surface-mount , power supply via main module, RS485 communication, IP65

    Specificaties:

    • Capacity
    • Fingerprint capacity - 1000
    • Card capacity - 6000

      Authentication
    • Card reading frequency - 13.56 MHz
    • Card reading distance - 2 cm
    • Card type M1, Desfire card

      Device interfaces
    • DIP switch - 8 bits
    • RS-485 - 1

      General
    • Installation - Flush mounting, surface mounting
    • Protective level - IP65
    • Working temperature - -30 °C to 60 °C
    • Working humidity - 10% to 90% (no-condensing)

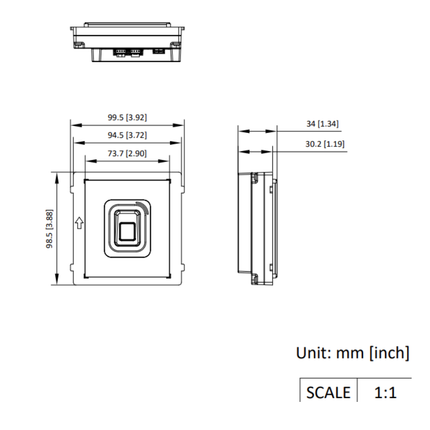

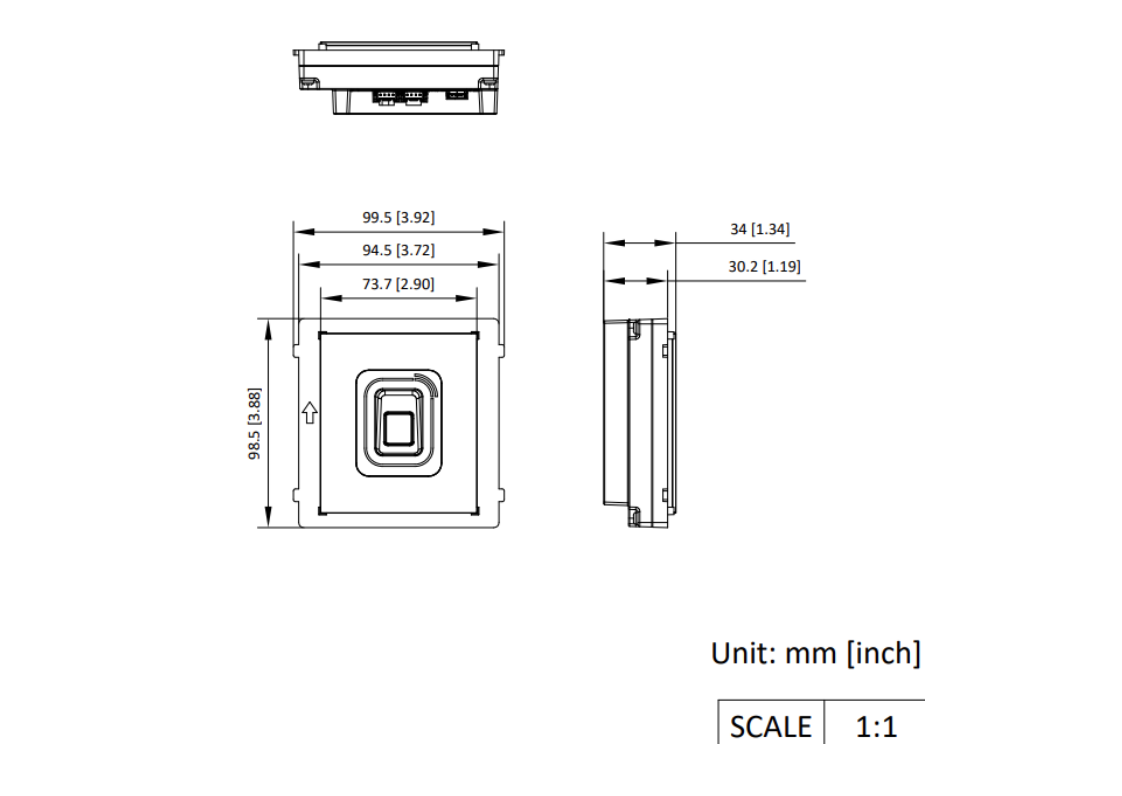

    • Dimension - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
    • Power supply - 12 VDC, supplied by the main module
    • Power consumption - ≤ 4 W

    Read more
