    Product Description

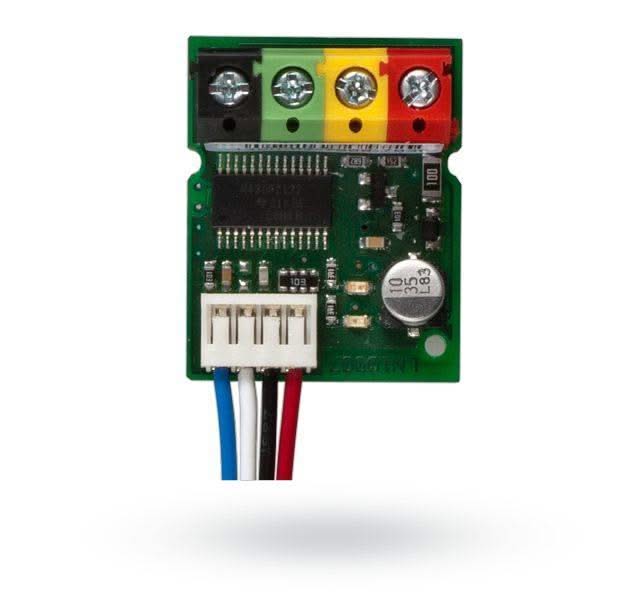

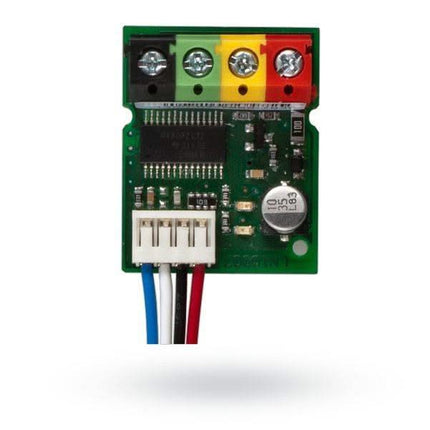

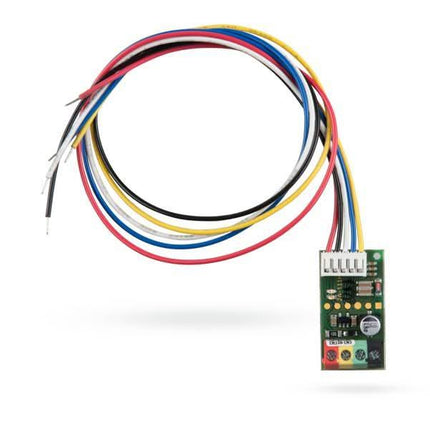

    Jablotron JA-111H BUS module interface for wired detectors

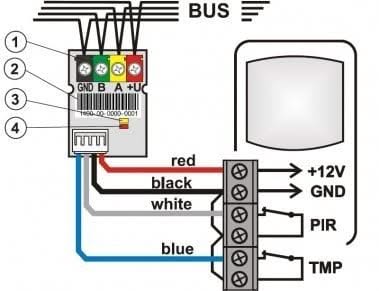

    The Jablotron JA-111H BUS module is designed to connect a wired detector to the alarm system.

    The module communicates a is powered by BUS from the control panel. The module is available as a PCB and can be installed in the wired detector. It provides one NC or one NO input. It allows the user to set a minimum trigger time (0.5s, 1s, 2s, or 5s)

    - Power supply: via the BUS of the control unit , 12V (9 - 15 V)
    - Standby current consumption: 2 mA
    - Maximum standby current consumption of the connected detector: 50 mA
    - Dimensions: 22 x 27 x 14 mm
    - Safety class 2 in accordance with EN 50131-1, EN 50131-3
    - Environment in accordance with EN 50131-1, EN 50131-3: II, indoor
    - Operating temperature: -10 to 40 °C
