Product form

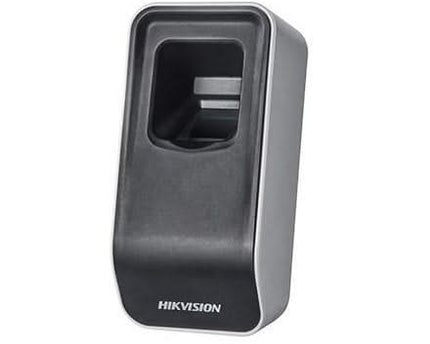

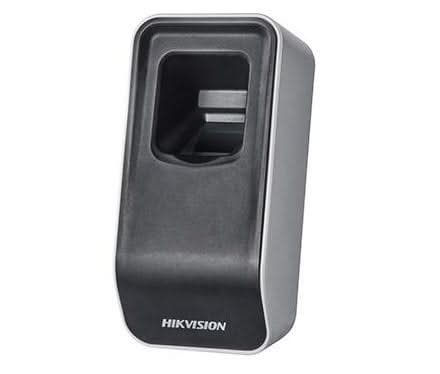

Fingerprint reader module, DS-K1F820-F

Fingerprint reading module, DS-K1F820-FThe DS-K1F820-F is a USB reading module to read fingerprints in a Hikvision access control system. The... Read more

Delivery time 1 - 2 working days

€189,00€156,20 Incl. VATExcl. VAT

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>
    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days
    Product Description

    Fingerprint reading module, DS-K1F820-F

    The DS-K1F820-F is a USB reading module to read fingerprints in a Hikvision access control system. The optical module used has been developed by Hikvision itself. This unit is not tied to one system and can therefore be used to read fingerprints in multiple systems.

    Specifications:

    System Parameters
    Operation System:| Windows XP, Windows7, and Windows 10
    Fingerprint Module: | Optical, Red Backlight
    Resolution: | 508 dpi
    Fingerprint Template Size: | 256 × 288 (pixel)
    Device Interfaces
    USB Interface: | USB2.0
    General
    Working Voltage: | 5 VDC, 200mA
    Dimensions (L×W×H): | 100mm × 48mm × 35mm
    CPU: | 32bit MCU
    Working Temperature: | -30°C to +70°C
    Working Humidity: | 20% to 80% (Non-Condensing)
