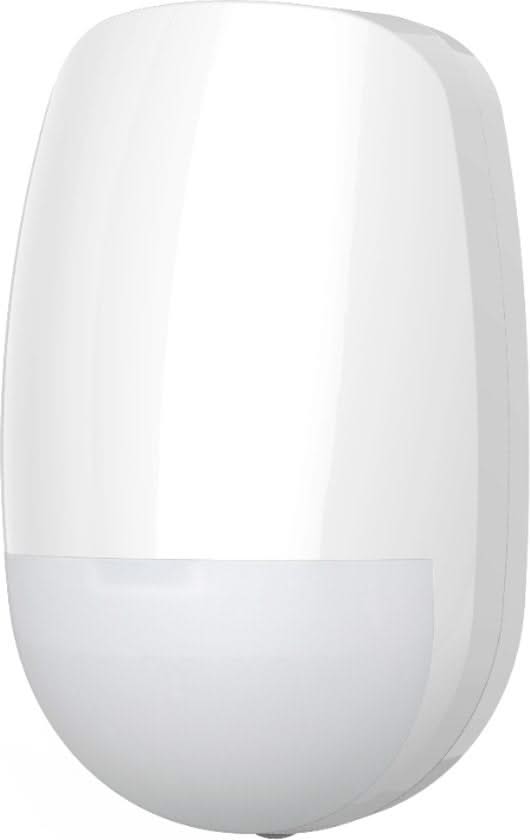

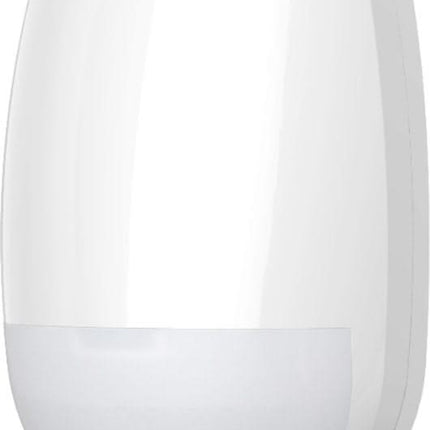

DS-PDD12P-EG2, wired DT detector

• Detection range: 12m / 85.9°
• Pey immunity up to 30 kg
• Automatic sensitivity
• Digital temperature compensation
• 52 zones of 3D optics including creep zone protection, full coverage without blind spot
• Selectable EOL resistors for alarm and tamper-proof wiring
• Sealed optics preventing insect interference
• 24 Ghz microwave
• 9 to 16 V wide voltage adjustment with reverse polarity protection
• Wall/ceiling mounting brackets available (sold separately)
• IFT technology prevents false alarms

Technische specificaties:

Detectie Prestaties

• Detection Method Passive Infrared; Microwave
• Detectiebereik 12m
• Detectiehoek 85,9°
• Detectiezones 52
• Detectable speed 0.3 ~ 2 m/s
• Gevoeligheid Auto;Pet
• Huisdierimmuniteit 30Kg
• Witlichtfilter 6500lux
• Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
• Support for digital temperature compensation
• Support for creep zone protection

Provide

• Ondersteuning bij digitale verwerking
• Verzegelde optische ondersteuning
• Sabotagebeveiliging voorzijde

Koppel

• Alarmuitgang Normaal Gesloten
• LED indicator Green (PIR), orange (microwave), blue (alarm)

Overdragen

• Overdrachtsmethode Bedraad

Elektrische kenmerken

• Power supply 9 to 16 VDC
• Typical voltage 12 VDC
• Stroomverbruik 17mA Max

Algemeen

• Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
• Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
• Bedrijfsvochtigheid 10% tot 90%
• Dimensions (WxHxD) 65.7 mm (2.59") × 103.8 mm (4.09") × 45.5 mm (1.79")
• 99 g (3.5 oz)
• Mounting height 1.8 m to 2.4 m
• Montagemethode Muur
• Toepassingsscenario Binnen
• Bracket Optional wall and ceiling accessory
