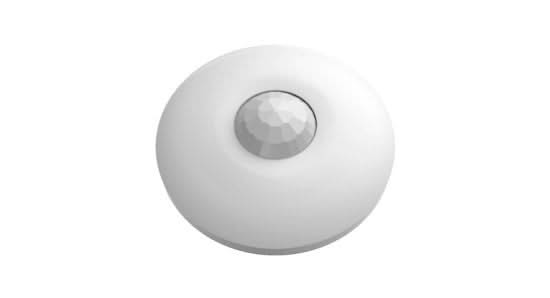

DS-PDCL12DT-EG2, Wired internal Dual-Tech detector

Hikvision DS-PDCL12DT-EG2, Wired internal Dual-Tech detector Digital quad pyro sensor + 24GHz microwave Automatic sensitivity wide voltage adjustment and built-in... Read more

Delivery time 1 - 2 working days

€79,00€65,29 -16% -16%
€66,00€54,55 Incl. VATExcl. VAT

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>
    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days
    Product Description

    Hikvision DS-PDCL12DT-EG2, Wired internal Dual-Tech detector

    • Digital quad pyro sensor + 24GHz microwave
    • Automatic sensitivity
    • wide voltage adjustment and built-in EoL resistor

    Detectie Prestaties

    • Detection Method Passive Infrared; Microwave
    • Detectiebereik 12m
    • Detectiehoek 360°
    • Detectiezones 172
    • Detectable speed 0.3 ~ 2 m/s
    • Gevoeligheid Auto; Laag
    • Witlichtfilter 6500lux
    • Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
    • Support for digital temperature compensation
    • Support for creep zone protection

    Support

    • Ondersteuning bij digitale verwerking
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voorzijde

    Koppel

    • LED indicator green (PIR), red (microwave), blue (alarm)

    Elektrische kenmerken

    • Stroomverbruik 100mA Max

    Elektrische kenmerken

    • Power supply 9 to 16 VDC
    • Typical voltage 12 VDC

    Algemeen

    • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
    • Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) φ120 mm x 33.2 mm
    • 138g
    • Mounting height 2.4 to 4m
    • Montagewijze Plafond
    • Toepassingsscenario Binnen
