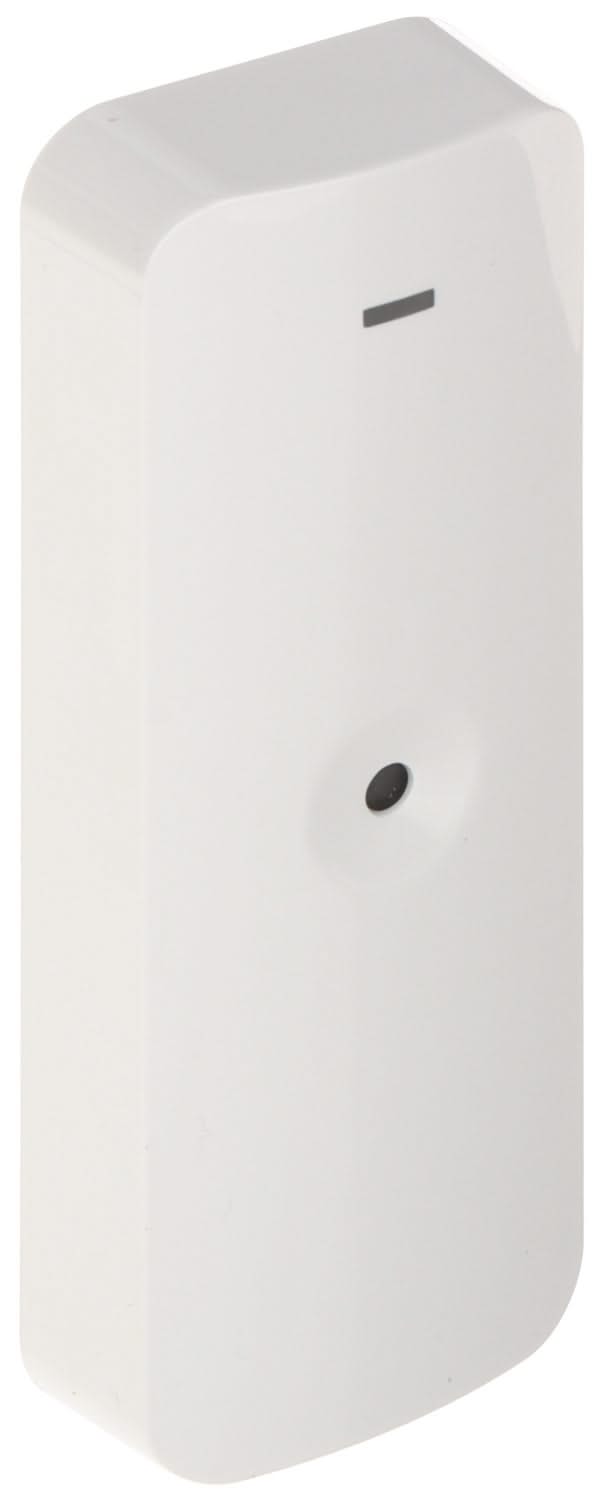

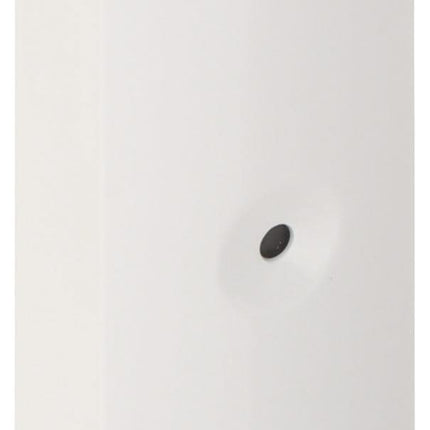

DS-PDBG8-EG2, wired glass breakage detector

DS-PDBG8-EG2, wired glass breakage detector High performance omnidirectional microphone sensor Up to 8 m/120° detection range Selectable EOL resistors: Alarm... Read more

Ordered before 11:59 PM, delivered tomorrow

Direct ophalen in showroom Gorinchem

€38,00€31,40 -16% -16%
€32,00€26,45 Incl. VATExcl. VAT

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>
    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days
    Product Description

    DS-PDBG8-EG2, wired glass breakage detector

    • High performance omnidirectional microphone sensor
    • Up to 8 m/120° detection range
    • Selectable EOL resistors: Alarm resistor: 1K, 2K2, 4K7, 5K6, 6K8/)
    • 9-16 VDC wide voltage adjustment with reverse polarity protection

    Technical specifications:

    Detectie Prestaties

    • Detection Method Acoustic sensor
    • Detectiebereik 8m
    • Detectiehoek 120°
    • Glass Break Sensitivity Potentiometer Adjustment
    • Type of glass Float; Plate; Knotted; Wired; Laminated Lead; Double Glazing
    • Glass thickness 2.4 mm to 6.4 mm
    • Glass size 0.3mx 0.3m to 3m x 3m

    Fitted with

    • Ondersteuning bij digitale verwerking
    • Sabotagebeveiliging voorzijde

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator Red (high-frequency trigger), green (low-frequency trigger), blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Voeding 9-16 VDC
    • Typische spanning 12V
    • Stroomverbruik 25mA

    Algemeen

    • Operating temperature -10°C to 55°C (14°F to 131°F)
    • Storage temperature -20°C to 60°C (-4°F to 140°F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) 38.8 mm × 107 mm × 22.5 mm
    • 49,5 g
    • Montagemethode Muur;Plafond
    • Toepassingsscenario Binnen
