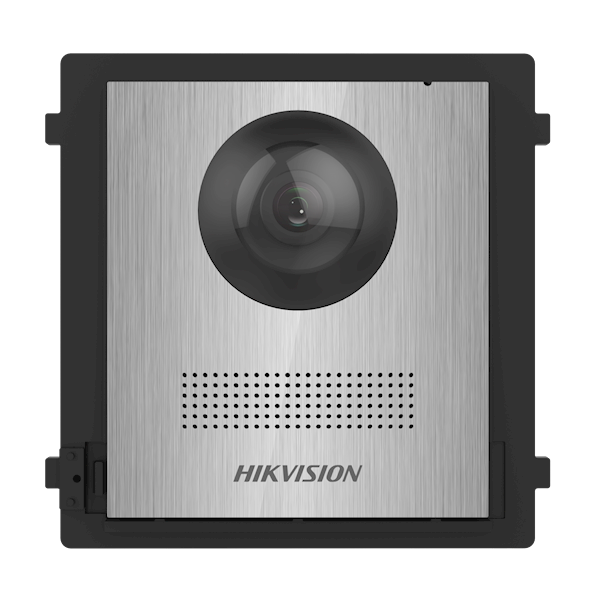

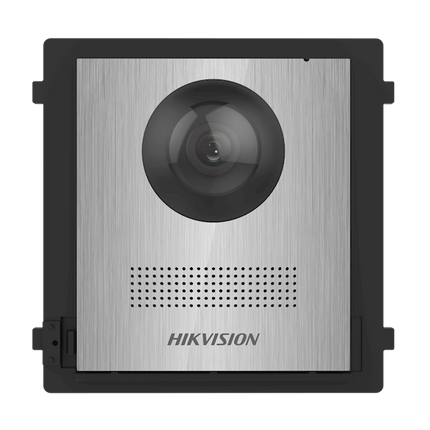

The Hikvision DS-KD8003-IME1(B)/NS is a camera module with a Full HD 2 megapixel 146 degree lens for use in the Hikvision second generation IP intercom system. In the flexible IP video intercom system, an outdoor station can be used with just the camera module possibly supplemented with up to 8 additional modules such as a keypad module, a card reader module, an indication module and/or a 6-button flat module. The modules must be built in or constructed with the separately available housings.
Specifications:
- System parameters
- Operating system: Embedded Linux operating system
- ROM: 32 MB
- RAM: 256 MB
- CPU: Embedded processor
- Display parameters
- Screen size: NA
- Operating mode: NA
- Type: NA
- Resolution: NA
- Video parameters
- Supplementary light: Low light, IR supplementary lighting
- Video standard: H.264
- Lens: 1
- Angle of view (FOV): Horizontal: 146°, Vertical: 82°
- WDR: Supported
- Resolution: 2 MP
- Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio compression standard: G.711 U, G.711 A
- Audio output: Built-in speaker
- Audio compression bit rate: 64 Kbps
- Sound quality: Noise reduction and echo cancellation
- Volume adjustment: Adjustable
- Capacity
- Fingerprint capacity: /
- User capacity: 2000
- Card capacity: 6000
- Face capacity: NA
- Capacity paired indoor station: 500
- Event capacity: /
- Sub-door station capacity: 16
- Network parameters
- Communication protocol: TCP/IP, RTSP
- Wired network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi: NA
- Bluetooth: NA
- 3G/4G: NA
- Device interfaces
- Alarm input: 4 (2 output push buttons and 2 door contacts standard)
- Network interface: 1 RJ45
- TAMPER: 1
- Output push button: 2 (2 for door lock control)
- Door contact input: 1
- RS-485: 1 (1 for Hikvision's sub-module communication)
- Wiegand: NA
- TF card: NA
- Alarm output: NA
- Lock control: 2 (2 relays)
- USB: NA
- Power interface: 12 VDC Power input (max 12 V, 500 mA)
- Two-wire IP interface: NA
- General
- Power source: 12 VDC/PoE (IEEE 802.3af)
- Operating temperature: -40° C to 60° C (-40° F to 140° F)
- Operating humidity: 10% to 95%
- Button: 0
- Protection level: IP65
- Installation: Surface mounting & recessed mounting
- Dimensions (L × W × H): 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
- Language: English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
- Indicator: 0
- Weight:
- Without packaging: 0.410 kg
- With packaging: 0.581 kg
- Battery:/
- Application environment: outdoor
- Power consumption: ≤ 5 W
