Product form

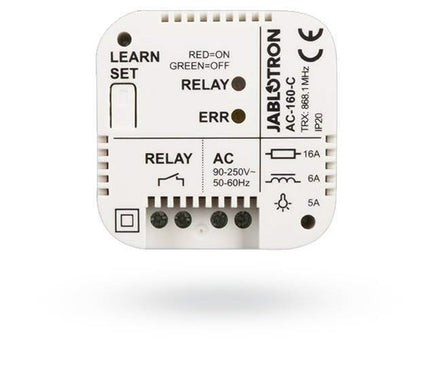

AC-160-C wireless multifunctional power relay, flush-mounted model

Jablotron AC-160-C wireless multifunctional power relay, flush-mounted modelThe relay can also be installed as an independent device, responding to the... Read more

Delivery time 1 - 2 working days

€152,90€126,36 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>
    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for AC-160-C wireless multifunctional power relay, flush-mounted model

    Product Description

    Jablotron AC-160-C wireless multifunctional power relay, flush-mounted model

    The relay can also be installed as an independent device, responding to the activation of unidirectional wireless detectors of the JA-15x series, for example. In this case, the relay is activated according to the mode selected for the relevant detector (choice of 5 modes): extended copy, impulse, status change, shutdown and blocking). It provides a switching contact relay with galvanic and safety isolation for switching a current load of 230V/16A. It occupies one position in the system.

    • Nominal supply voltage 100-230 V, 50-60 Hz
      Internal energy consumption at 230 V AC (min / max) 0.2 W / 0.7 W
      Operating frequency 868.1 MHz, Jablotron protocol
      Antenna internal
      Contact load capacity - protection class II Max. switched voltage 250 V AC
      Resistance load (cosφ=1) max. 16 A
      Inductive, capacitive load (cosφ=0.4) max. 8 A
      Halogen lighting max. 1000 W
      Minimum switched DC power supply 0.5 W
      Diameter of connected conductors max. 2 x 1.5 mm2 ; max. 1 x 2.5 mm2
      Class of protection against ingress IP20
      Sizes 49 x 49 x 26 mm
      Operating temperature range -10 °C - + 40 °C, RH 75% non-condensing
      Compliant with ETSI EN 300 220-1, EN 50130-4, EN 55022, EN 60950-1
      Operating conditions ERC REC 70-03

    Read more
