Important!

Make sure your current recorder can handle the HD resolution of this camera.
This is not an IP camera.

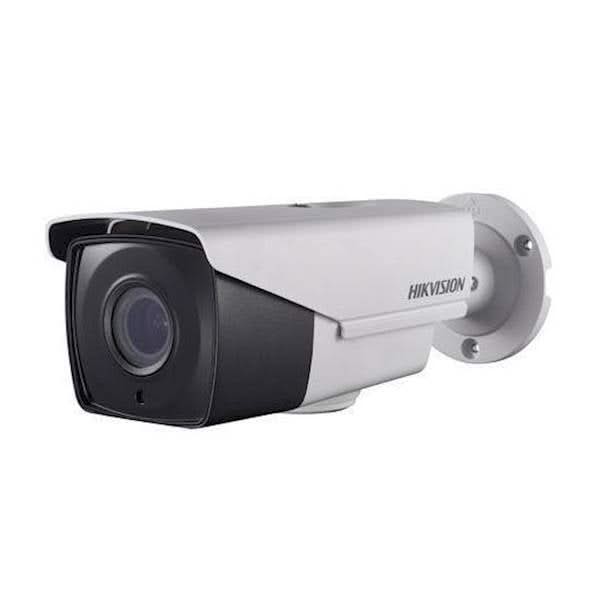

DS-2CC12D9T-AIT3ZE, 2MP VariFocal Ultra Low-Light PoC Bullet Camera

Turbo HD cameras feature Hikvision-developed HD-TVI technology. This technology allows high-resolution cameras to be applied to coaxial cabling. The advantage of HD-TVI technology is that it is easy to apply, even to the infrastructure of existing analogue camera systems. In addition, this camera features PoC (Power Over Coax). With this technology, the camera is powered over the coax cable up to distances of up to 300 metres. This eliminates the need for a separate power supply and additional cabling. Due to its light-sensitive sensor and built-in image optimisation technology, this Ultra Low Light camera performs excellently in low-light situations.

Specifications:

Camera:

• Imaging sensor: 2MP Progressive scan CMOS
• Pixel count: 1920x1080
• Minimum illumination:
  0.005Lux/F1.2 in colour, 0Lux with IR on
• Shutter speed: 1/25s to 1/50,000s
• Brandafstandpunt: 2.8-12mm
• Lens type: Motor zoom lens
• Horizontal aperture angle: 32.1-103°
• WDR: WDR 120dB
• Infrared: up to 40m, EXIR, SmartIR

Camera positioneren:

• Pan/Tilt/Rotatie:

  • Kantelhoek: 0~90°
  • Rotation: 0~360°
  • Pan: 0~360°

Menu:

• Day/Night Mode: Auto/Colour/Black and White
• White balance: ATW/manual
• Backlight compensation: WDR/BLC
• Functions: brightness, sharpness, mirrored, SmartIR

Interface:

• Video output: 1 HD analogue

Overige:

• Operating temperature: -40 to 60 degrees
• Power supply: DC 12V, PoC.at
• Power consumption: max 8.2W
• Waterdichtheid: IP67
• Material: metal & plastic
• Afmetingen: 92x89x269.6mm

Datasheet:
