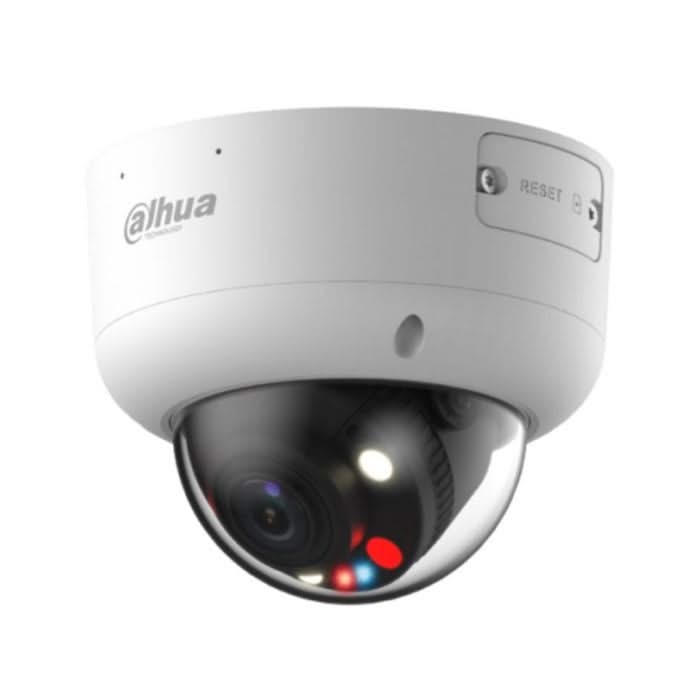

TiOC 2.0 represents the next-generation 3-in-1 camera that integrates 24/7 full-color monitoring, active deterrence and AI into one smart and innovative solution. TiOC can accurately identify potential risks and effectively warn intruders, effectively protecting property security.
TiOC provides an accurate alarm function by accurately targeting people and vehicles, while filtering out non-target objects (such as animals, leaves and car headlights). In addition to keeping the false alarm rate below 2%, its powerful AI algorithms also deliver faster, more accurate motion detection with a longer range.
TiOC stands for Three-in-One-Camera. Besides full-colour and WizSense technology, the camera also features a speaker and red/blue flashing light which can be linked to different detection shapes. These features are all freely adjustable.
The camera features intelligent algorithm for recognising people and vehicles. This intelligence can be applied in the IVS rules (AI perimeter) and motion detection (SMD).
The alarm input on a TiOC 2.0 camera can be used to activate and deactivate the alarm function. This allows the alarm function of the TiOC camera to be switched on simultaneously with the alarm system, for example. Please note! This therefore requires a separate cable to be laid between the camera and the alarm system.
The smart Dual illuminator mode is a function that can switch from IR backlight to white LED backlight the moment a person enters the detection area . This can be useful as ambient light but also has a deterrent effect. From TiOC -S4 models onwards, the detection area for Smart Illumination is the same as Smart Motion Detection.
Thanks to a new design with 2 microphones, this camera offers excellent sound quality when using the microphone function. In ideal conditions, the microphone also has a range of up to 7 metres.
Specificaties:
IK10 | Aantal beeldsensoren: | 1 |
| Optisch/Thermisch: | Optisch |
| Beeldsensor: | 1/2.8 |
| Resolutie: | 3840 x 2160 |
| Aantal pixels: | 8MP |
| Minimum illumination strength (in colour): | 0.004 lux |
| Minimum illumination strength (LED on (black/white)): | 0 Lux |
| Verlichting: | Strobe Lighting, White LED |
| LED afstand: | up to 50m |
| LED On/Off (Day/Night): | Auto/Manual |
| Aantal LED(s): | 4 LED |
| Sluitersnelheid: | 1/3s ~ 1/100,000s |
| Ruisonderdrukking: | 3DNR |
| Lens type: | Motorzoomlens |
| Iris: | Fixed Iris |
| Brandpuntsafstand: | 2.7mm ~ 13.5mm |
| Maximale opening: | F1.0 |
| Horizontale openingshoek: | 108° ~ 34° |
| Verticale openingshoek: | 56° ~ 19° |
| Focusbediening: | No |
| Stream mogelijkheid: | 3 streams |
| Video compressie: | H.264, H.264 +, H.264 B, H.264 H, H.265, H.265+, MJPEG |
| Frames per second (Main stream): | 25fps @3840 × 2160 |
| 2de stream: | 25fps @704 × 576 |
| 3de stream: | 25fps @1920 x 1080 |
| Bitrate: | H.264: 3 kbps-20480 kbps, H.265: 3 kbps-20480 kbps |
| Dag/Nacht: | Auto (filter), Colour, Black/White |
| Lichtcompensatie: | BLC, HLC, WDR(120dB) |
| Bewegingsdetectie: | Aan/Uit |
| | |
| Slimme Functies: | AI Perimeter Protection |
| | AI Motion detection |
| Smart IR: | Yes |
| Smart LED: | Auto/Manual |
| Defog: | Yes |
| Privacy-maskering: | Yes |
| Ingebouwde microfoon: | Yes |
| Audio ingang: | Yes |
| Audio Uitgang: | Yes |
| Audio Compressie: | AAC, G.711 A, G.711 MU, G.722.1, G.723, G.726, G.729, PCM |
| Speaker: | Yes for Audio alarm |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Storage option SD card: | Yes |
| Maximum Storage Capacity SD card: | 256GB |
| Alarm: | Yes |
| Number of channels in: | 1x Max 5mA 3V-5V DC |
| Number of channels off: | 1x Max 300mA 12V DC |
| inclusief voeding: | No |
| Voeding: | 12V DC, PoE (Type IEEE 802.3af) |
| Max Verbruik: | Min consumption:4.4W (12 V DC); 5.8 W (PoE)
Max consumption:7.9 W (12 V DC); 10.1 W (PoE) |
| Werktemperatuur: | -40°C ~ +60°C |
| Waterdichtheid: | IP67 |
| Vandaalbestendig: |
| Materiaal | Metal |
| Diameter | Ø126mm |
| Hoogte | 105mm |
| Gewicht: | 0.73 Kg |
