The wireless glass breakage detector recognises when different types of glass break and triggers alarms in real time. With advanced technology, it captures the low and high frequencies released when glass breaks, reducing the likelihood of false alarms due to ambient noise. It also features two external ports that can be connected to third-party wired detectors.

Detects when glass breaks and triggers alarms for different types of glass, such as toughened, double-glazed, laminated, reinforced, plate and float glass.
Detects high and low frequency sounds simultaneously and uses algorithms to reduce the number of false alarms.
Two-channel alarm input.
Cloud update and automatic recovery in the event of a failed update.
The two-way wireless encrypted communication mechanism improves the security and stability of communication.
With the wireless frequency hopping mechanism, the device automatically switches to other available frequency bands when the original frequency band is disturbed by other wireless signals, to ensure stable communication.

Specificaties:

Port
- Alarm Input: 2 (NO/NC)
Microfoon
- High-sensitivity omnidirectional microphone
Functie
- Button: 1 × on/off button
- Function update: Cloud update
- Detection Low Battery: Yes
- Sabotage: Yes
Technisch
- Detection range: Max. 9 m (29.53 ft)
- Specifications of glass to be detected:
  - Glass type: toughened, double-glazed, laminated, reinforced, plate and float
  - Glass thickness: 2.4 mm-6.4 mm (0.09"-0.25")
  - Glass size: 0.3 m × 0.3 m to 3 m × 3 m (0.98 ft × 0.98 ft to 9.84 ft × 9.84 ft)
- Test mode: yes
- LED Indicator: 1 × green alarm indicator
- Scenario: Indoor
- Operating current: 45 uA
- Alarm current: 50 mA
Draadloos
- Frequency: 868.0 MHz-868.6 MHz
- Communication mechanism: Two-way
- Communication Distance: 1,600 m (5,249.34 ft)
- Encryptiemodus: AES128
- Frequency Skip: Yes
Algemeen
- Power supply: 1 × CR123A battery
- Batterijmodel: CR123A
- Battery duration:
  - 3 years (The external input mode is NO)
  - 1 year (Both external sensors are on and input mode is NC)
- Current consumption: Max. 150 mW
- Operating temperature: -10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating humidity: 10%-90% (RH)
Product information
- Dimensions: 107.8 mm × 34.5 mm × 24.8 mm (4.24" × 1.36" × 0.98")
- Net weight: 45 g (0.10 lb)
- Installation: Surface mounting
- Casing material: PC and ABS
- Colour: White
Certifications
- CE
- Anti-corrosion level: Basic protection

Glass breakage detection

Too much choice? Chat or call us at 085-0160316

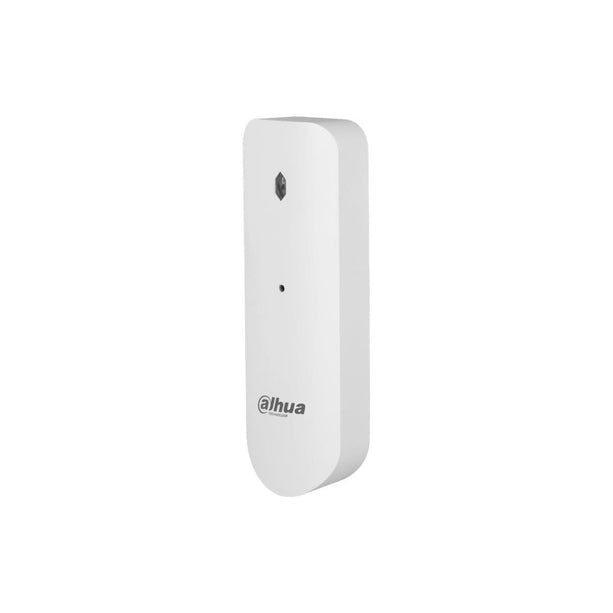

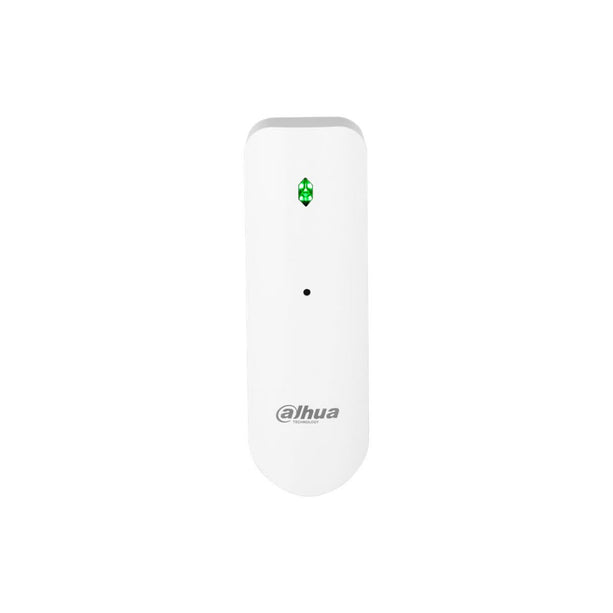

DahuaARD512-W2(868), Wireless glass breakage detector, AirShield
