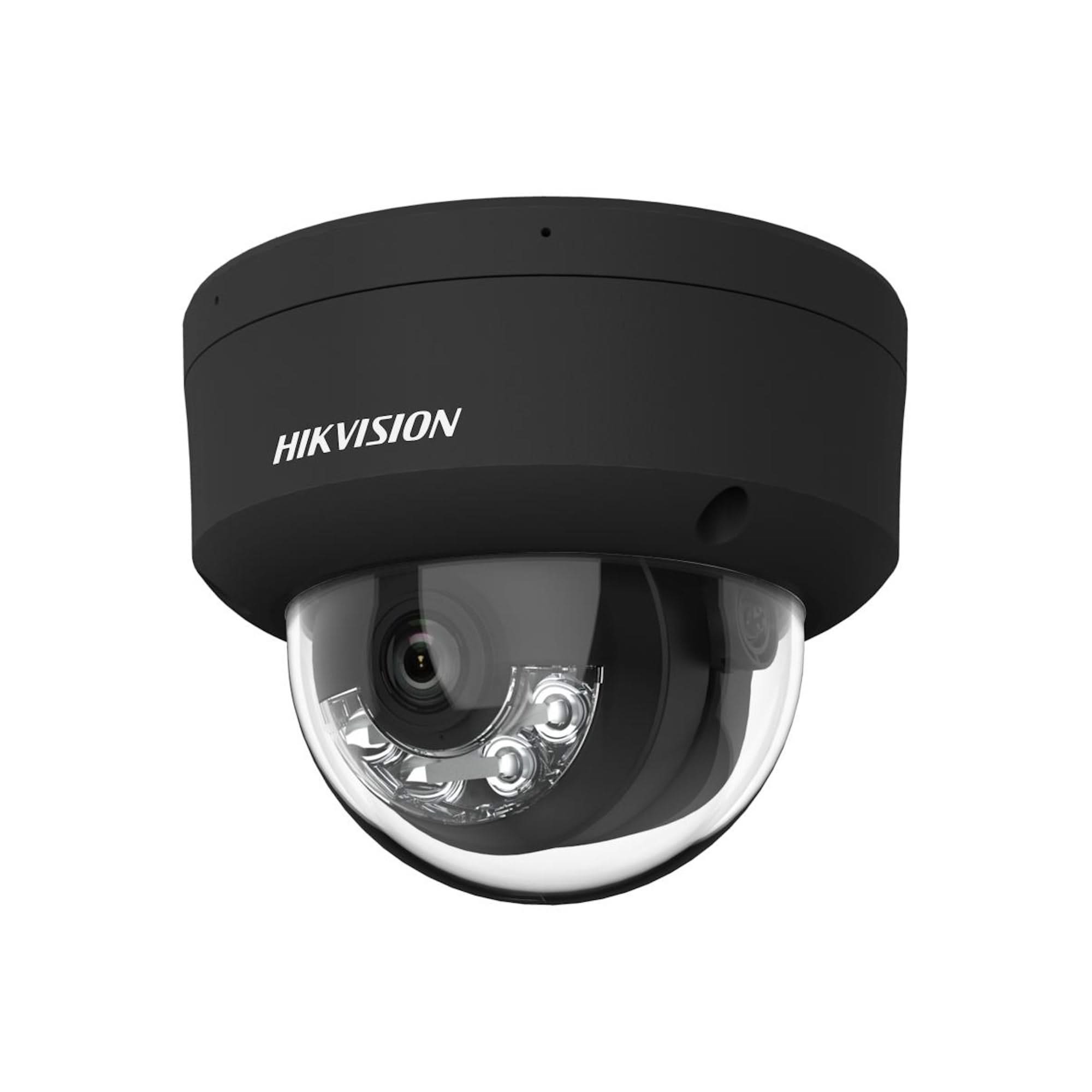

The Hikvision DS-2CD2143G2-LIS2U BLACK outdoor IP camera is designed for installation in areas with high human and vehicle traffic. Thanks to its durable aluminium housing, it can withstand weather conditions and mechanical stress. The camera is certified to IP67 and IK10 protection standards, allowing it to operate effectively in conditions of dust, moisture and sudden temperature changes, and to withstand shocks and attempted vandalism.
The camera is equipped with a lens with a fixed focal length of 2.8 mm, offering a wide viewing angle of 104°, allowing you to cover a large observation area. 1/2,9" Progressive Scan CMOS matrix with a resolution of 4 MP (2688 × 1520) and a recording rate of up to 25 frames. In low light, the camera automatically switches to night mode and built-in IR and LED illumination ensure visibility up to a distance of 30 metres, even in total darkness with full-colour images!
The model supports modern codecs H.265, H.264, H.265+, H.264+ and MJPEG, allowing you to compress video without quality loss and reduce file size. The camera has a slot for microSD cards up to 512GB. The device connects via a standard RJ45 connector (10M/100M) with PoE support, which greatly simplifies the installation process, as data transmission and power are via a single cable.
DS-2CD2143G2-LIS2U is equipped with a built-in microphone for audio recording and also supports many intelligent functions such as cross-line and zone intrusion. Alarms for detecting people and vehicles are also supported. The camera can be remotely controlled via a web interface using iOS and Android devices, allowing you to control its operation from anywhere in the world.
Specifications:
- Camera
- Image Sensor1/2.9" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- Depth of Field
2.8 mm: 1.4 m to ∞
- DORI
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings,
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Target CroppingYes
- Audio
- Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering-2U: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Web Browser
Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Image
- Image Parameters SwitchYes
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask8 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Audio
Built-in Microphone:
-2U: Arrayed dual-microphone
-S: 1 input (line in), two-core terminal block, max input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/NAS/memory card,notify surveillance centre,send email,trigger recording,trigger capture,-S: trigger alarm output
- General
- Power
12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.5 W
- MaterialBase: aluminium alloy, cover: aluminium alloy
- DimensionØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
- Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- WeightApprox. 600 g (1.3 lb.)
- With Package WeightApprox. 830 g (1.8 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
